Built to withstand the toughest environments Mobile HQ delivers everything you need to keep your crew operational and comfortable, no matter where the work takes you. Fully self-sufficient and solar-powered, it includes a built-in kitchenette and toilet for convenience on the go. It’s easy to tow with a standard vehicle, requires zero setup, and is ready to go the moment it lands. With reverse-cycle air conditioning for all-weather comfort, mine-spec compliance for safety, and space to support up to 12 people, Mobile HQ is the ultimate mobile workspace
- Smoke alarms throughout

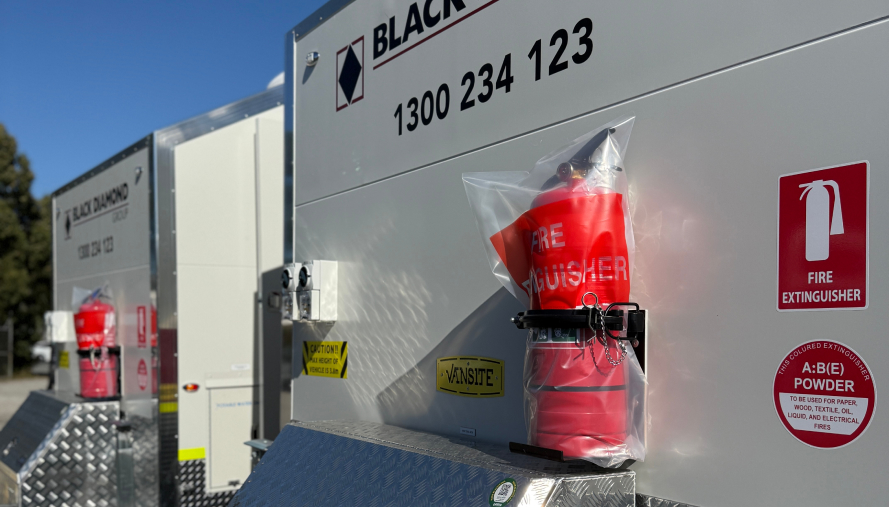

- Fire extinguishers and blanket
- Venta in cab brake controller
- ID signage
- spare wheel winders
- Mobile site office manual
- Heavy duty front drop Leg
- Van stabilizing legs x 4
- Wheel nut indicators

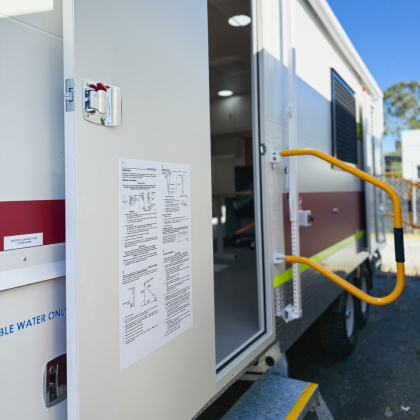

- Fold out steps and pop out safety rails
- Wheel chocks x 4
- Spare wheels x 2
- Security windows with roll down blinds
- Wheel brace, jack, drop down leg and
- 12v External spot lights
- Tare Weight: 3460kgs when Van is completely empty
- ATM: 4500kgs maximum weight with all tanks full
- Tow Ball Weight: 360kgs
- Connection Type: 70mm Pintel Hook
- Tow Ball connection Height: 580mm
- Body length: 7200mm
- Interior Length: 7100mm
- Travel Length: 8900mm
- Width: 2490mm
- Total Travel Height: 3550mm
- Interior Height: 2300mm
- Van Wind Rating: Region B Terrain Category 3
- 12volt Solar system that runs fridge/freezer
- Lights, water & toilets

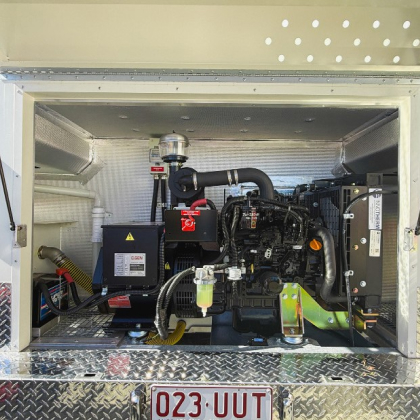

- Enclosed 13.5 kVA generator
- In cab stop / start control panel
- E-stops and lockout switches
- 150L Diesel tank
- 500L Potable water tank
- 500L Waste tank
- Reverse cycle air conditioning x 2

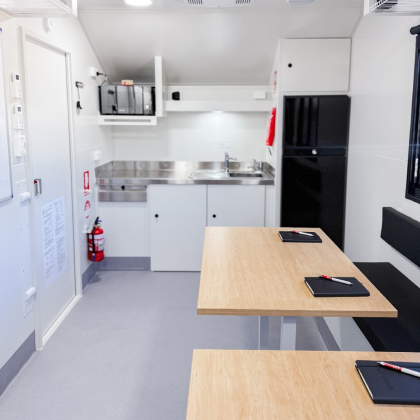

- Kitchenette that includes, 12v fridge/freezer, sink, microwave, kettle, & water cooler
- 14 Ft Awning
- Overhead storage including bag rack holders
- White and Cork boards
Efficiency
Efficiency is at the forefront of all Black Diamond Group projects. We offer an unparalleled schedule and service by completing modular building construction inside our factory, mitigating the risk of delays and saving you both time and money.
We also offer our customers the option to complete on-site development and installation during school holidays in order to reduce the impact on your school.
Cost-effective
Our team of highly-qualified experts are backed by a financially sound corporate structure which allows us the ability to offer cost-effective, fixed monthly prices, provide quotes upfront and offer a time-saving and cost-saving service.
Relocatable
School demountables offer the added value of portability and flexibility. Complexes can be expanded or decreased in size to suit your specific needs and can also be added on to existing, non-modular building structures.
Relocatability makes modular classrooms ideal for the expanding number of students and changes in learning space needs.
Minimal Impact
In order to minimise the impact on school grounds, Black Diamond Group conducts most of our demountable construction off-site in our factory, which minimises on-site traffic and produces less noise and disruption for community residents.
Operating largely off-site also minimises risk to students and workers as well as the impact on the environment.
Health & Safety
Health & Safety
Black Diamond Group is dedicated to Occupational Health and Safety, the environment and quality assurance.
Our commitment is to provide a safe environment, system and disciplines that can deliver consistent quality products and services to our customers.
- AS/NZS ISO 9001-2016 Certifies Black Diamond Group’s commitment to quality, leadership, systems, and processes to consistently meet customer expectations.
- AS/NZS ISO 14001-2016 Certifies Black Diamond Group’s sound leadership and stable processes that reflect our commitment to protecting the environment and communities in which we operate.
- AS/NZS 4801-2011 Certifies Black Diamond Group’s Occupational, Health and Safety standards compliance.
